LUX Laser Cutting Machine
Immediate launch of new designs, no time waste, no dies.
Macarbox provide a unique Laser Cutting and Creasing Technology on the market for corrugated board with a high Speed single pass and fully automatic laser machine.
Features
- High Speed single pass laser, cutting and creasing.
- Faster than conventional cutting tables.
- Control of the laser penetration into the corrugated board.
- Zero change over time between new designs.
- Optimal solution for small and medium batches of boxes and displays.
- Possibility to define new forms, new designs and new business opportunities to our customers.
- Possibility to mark logos, letters, serial numbers, QR-Codes.
- No influence of printed or coated paper
- Non-stop job management with user-friendly flexible interface.
- Easy to use and minimum operator requirements. Fully automated for optimized performance at all levels.
- Perfect match to our Digital Printing.
Technical data
| Technical Characteristics | Laser Cutting Machine |
|---|---|
| Min Width Sheet | 700 mm |
| Max Width Sheet | 1600 mm |
| Min Length Sheet | 1000 mm |
| Max Length Sheet | 3500 mm |
| Corrugated Sheet Thickness | 1.5 mm - 8 mm (Doble) |
| Max Mechanical Speed belt | 600 mm/s |
| Technical Characteristics | Laser Cutting Machine |
|---|---|
| Min Width Sheet | 27” |
| Max Width Sheet | 63” |
| Min Length Sheet | 39” |
| Max Length Sheet | 138” |
| Corrugated Sheet Thickness | 0.06” - 0.3” (Double) |
| Max Mechanical Speed belt | 600 mm/s |

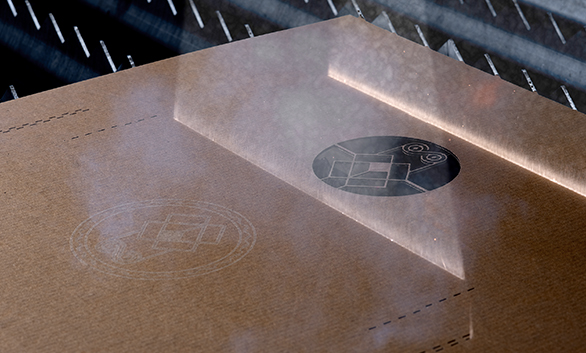

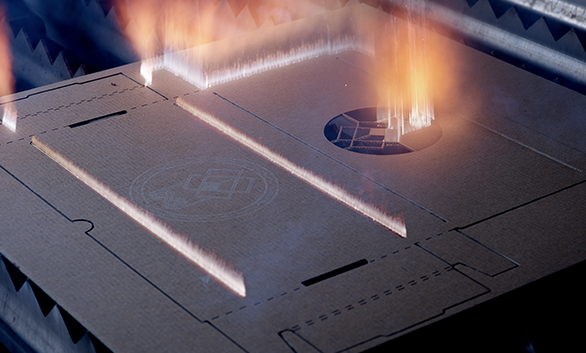

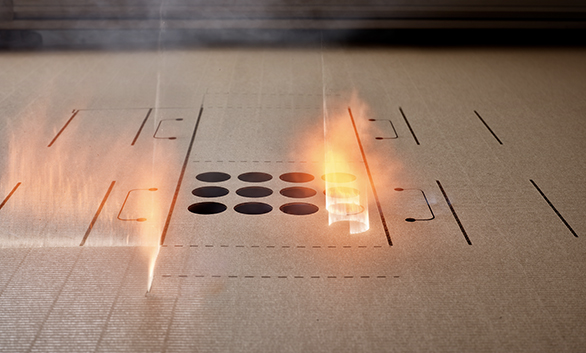

Gallery
